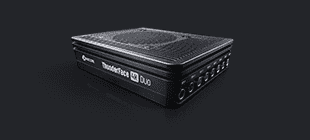

ThunderFace 4K Duo+ combines input and output into a single device, eliminating the need for separate capture cards and output hardware.
It is designed for professional film and broadcast workflows where predictable signal handling, frame-accurate metadata, standard output frame rates, and low-latency monitoring are required.
Features
SDI Inputs & Outputs
Simply by flashing firmware, ThunderFace can switch between output-only and input/output modes. Output mode provides eight HD or two Ultra HD outputs, while input/output mode enables four HD inputs and outputs or two UHD inputs and outputs.
Single-Cable Connection
ThunderFace connects to your host device using a single cable that provides video, audio, and control data transfer. Additionally, in the case of a MacBook Pro or an iPad Pro, it also charges your host device with a 60W power delivery standard.
iPad Pro Compatibility
A unique design enables direct connection to iPad Pro, turning it into a professional video monitor and recorder. When paired with the free QTAKE Monitor app, it enables multi-camera Ultra HD capture and playback with no ongoing license fees.
Zero-Latency Processing
ThunderFace converts the DisplayPort output of the computer directly to the SDI signal, without internal buffering. In this mode, SDI outputs are limited to the same frequency, but video output is delivered with the lowest possible delay.
Metadata Support
In addition to video and audio content, ThunderFace device captures and outputs metadata over each SDI channel, including LTC and VITC timecode, camera positioning data for VFX, as well as Dolby Vision and HDR metadata.
Silent Active Cooling
An innovative, whisper-quiet fan from the iconic Noctua brand is integrated within the user-replaceable part of the chassis to keep the device running at low temperatures even with the most demanding dual 4Kp60 setup.
New possibilities
ThunderFace 4K Duo+ opens new possibilities for compact, high-performance multi-camera setups across film, live production, and broadcast environments. Let's take a look at two deployment examples.
Connected to your host system and powered by software suitable to your workflow, it adapts to a wide range of production needs - from lightweight, portable iPad Pro monitoring using the free QTAKE Monitor app, to full-featured video assist configurations on a MacBook Pro driven by QTAKE Pro Video Assist software.
Smart & Slim Multi-Camera
Monitor-Recorder
A compact and efficient monitor-recorder, powered by the free QTAKE Monitor app.
Provides essential monitoring and recording features without ongoing software licensing costs. QTAKE Monitor offers live monitoring and recording, playback with custom ranges, metadata editing, 3D LUTs and image analysis tools, reports export and more.
Host Device: Apple iPad Pro
Software: QTAKE Monitor 5.2 (free)
Compatibility: Compatible with QTAKE Cloud and QTAKE Pro Video Assist for scaling into advanced workflows when required.
Full-Featured Multi-Camera
Video Assist
A powerful and portable QTAKE Pro setup with reduced footprint and complete feature set.
Designed for complete on-set video assist workflows, including recording, compositing, live grading, editing, and dailies.
Host Device: Apple Silicon MacBook Pro
Software: QTAKE Pro 3.0 (modular licensing)
Compatibility: Fully integrated with QTAKE Cloud for collaboration and remote production workflows.
Tech specs
- SDI I/O in 4/4 Firmware
- Input: Two 12G-SDI or four 3G-SDI channels
- Output: Two 12G-SDI or four 3G-SDI channels
Eight BNC connectors in a fixed 4-in/4-out mode.
- SDI I/O in 0/8 Firmware
- Input: N/A
- Output: Two 12G-SDI, four 3G-SDI + one 12G-SDI, or eight 3G-SDI channels
Eight BNC connectors in a fixed 0-in/8-out mode.
- Reference Input
- 1x HD-BNC (miniBNC) connector for HD Tri-level sync
- Audio Input / Output
- 2x balanced output
- 2x balanced input
- 1x balanced output + 1x balanced input
3.5mm audio jack (TRRRS) with following configurations:
- Control
- QTAKE Pro 3.0 or later and Apple Silicon hardware
- QTAKE Monitor 5.2 or later (contact us for beta access) and an iPad Pro
- Data Ports
- TB3 class (USB-C-type connector) for connecting to the host computer
- USB-C connector for connecting external USB devices
- Power
- USB-C connector with PD support (20V/5A 100W profile)
- 100W USB-C PD power supply included (100-240 VAC, 50-60 Hz)
- Physical
- 170 x 141 x 19-34 mm (6.69” x 5.55” x 0.75-1.35”)
- 650 g (1.43 lb)
- 4 × 1/4" mounting holes on the sides
- Status multi-color LED
Choose the right model
Our lineup includes three devices for professional SDI video: ThunderFace Duo+, ThunderFace Duo, and QOD+, differentiated by their features, build, and price. Compare their key advantages below to find the right device for your workflow.
ThunderFace 4K Duo+
- SDI I/O in one device
- 2x 4K or 4x HD I/O in 4/4 mode
- 2x 4K or 8x HD out in 0/8 mode
- Metadata, HDR & Dolby Vision® support
- Single-cable connection
- Zero-latency processing
- Silent active cooling
- QTAKE Pro 3.0+ and QTAKE Monitor compatible
- Slim aluminium case
- New 2026 model
- MSRP $4,890 / 4 290 €
ThunderFace 4K Duo
- SDI outputs only
- DisplayPort input
- 2x 4K or 8x HD output
- Metadata, HDR & Dolby Vision® support
- Single-cable connection
- Zero-latency processing
- Silent active cooling
- QTAKE Pro compatible
- Rugged aluminium case
- Upgradable to Duo+
- MSRP $4,790 / 4 190 €
